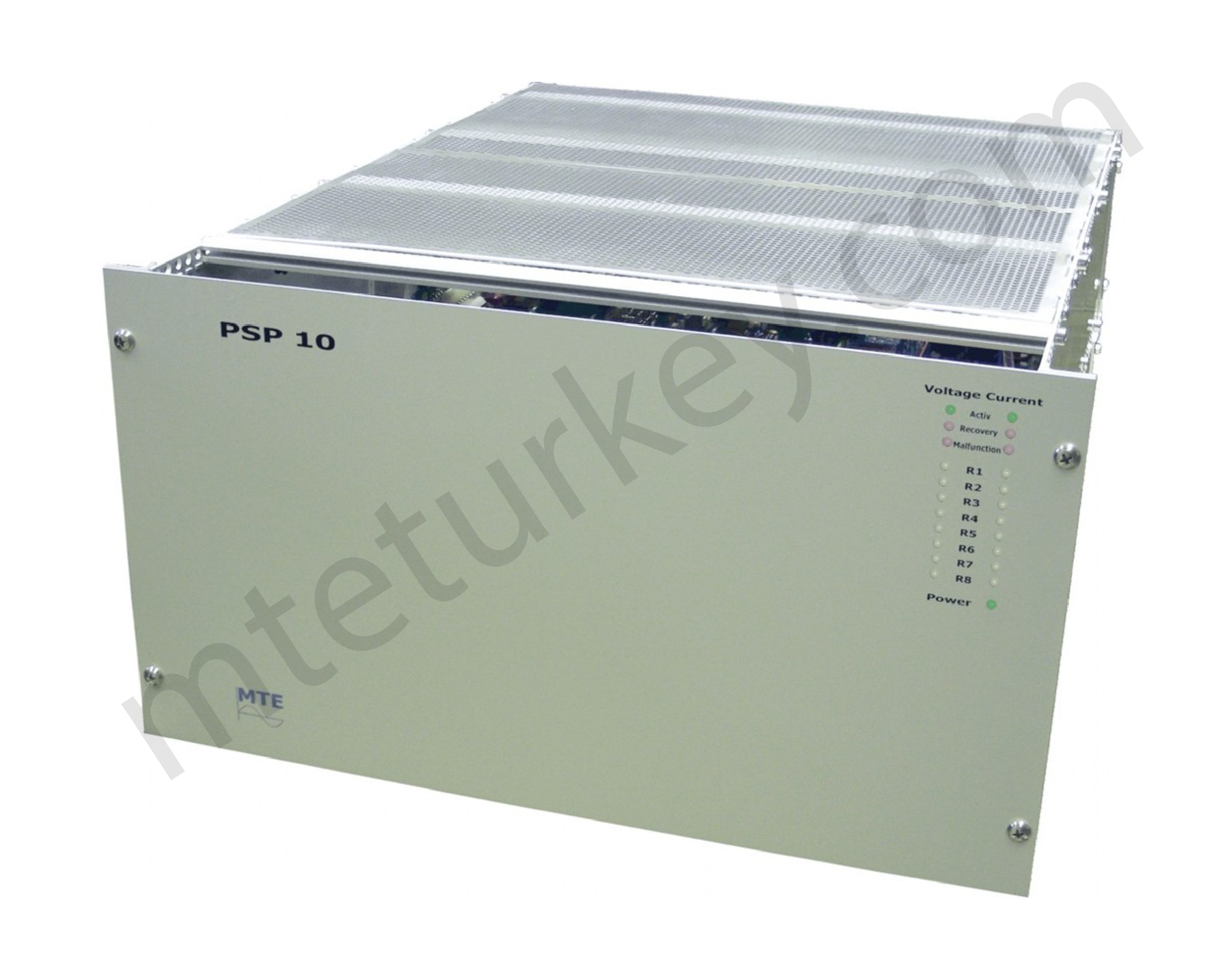

PSP 10

The PSP 10 is a single-phase, computer controlled voltage and current source for use in meter test systems and in laboratories.

Key features of the PSP 10
• Compact electronic voltage and current source (single- phase)
• Controlled by PC via serial interface RS 232 C
• Phantom load generation for active and reactive power meters
• High accuracy and stability of the adjusted load independent of supply voltage deviations
• Power efficiency > 85 %
• Voltage and current range:
Voltage: 30 V up to 300 V
Current: 1 mA up to 120 A
• Output power:
Voltage: 800 VA
Current: 1200 VA

Options
• Software module for fully automatic measurements
• Generation of harmonics
• Generation of ripple control signals
